Nombre De La Marca:	Sihovision
Número De Modelo:	SC15
Cuota De Producción:	1 pieza
Precio:	Negociable
Detalles Del Embalaje:	1 unidad/caja 60x40x18cm 8kg
Condiciones De Pago:	T/T, PayPal, L/C, D/A, D/P, Western Union, MoneyGram

Información detallada

Descripción de producto

Información detallada

Lugar de origen:

Shenzhen, China

Certificación:

CE,FCC,RoHS

Nombre del producto:

15 pulgadas de panel incrustado

UPC:

Celeron J4125

Grado IP:

panel frontal IP65

Brillo:

300CD/m2

Tocar:

Touch capacitivo proyectado (hasta 10 puntos)

Resolución:

1024*768

Relación de aspecto:

4: 3

ángulo de vista:

89 °/89 °/89 °/89 ° (R/L/U/D)

Resaltar:

15 inch industrial touch computer

open frame capacitive touch panel

J4125 embedded panel PC

Descripción de producto

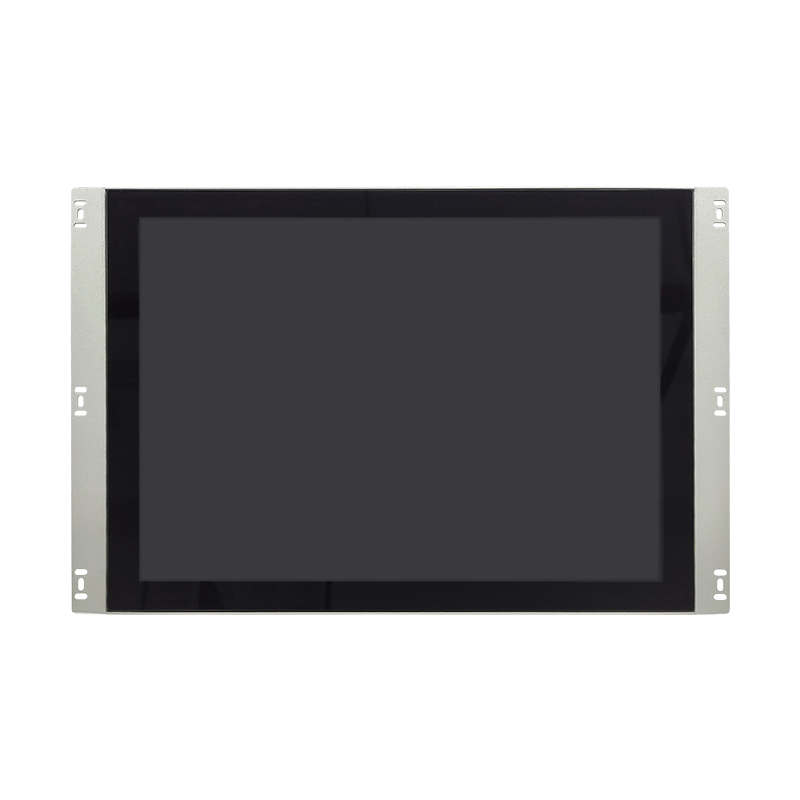

15 Inch Open Frame Capacitive Touch Industrial Computer J4125

1. Open Side Strip Installation, No Bezel Design

Frameless or minimal bezel design for a sleek, modern look
Side strip mounting system for easier installation and maintenance

2. Industrial Grade LCD Screen, Full Viewing Angle

Built to commercial/industrial standards for durability and longevity
IPS or similar technology providing 178° viewing angles from all directions

3. 10-Point Capacitive Touch Screen with Protection

Supports up to 10 simultaneous touch points (multi-touch)
1.8mm chemically strengthened tempered glass
6H hardness rating (scratch-resistant, though note that Gorilla Glass typically reaches 7-9H)

4. EETI Touch Control Solution

Uses EETI (eGalax_eMPIA Technology Inc.) touch controller
Functions reliably even with water droplets present (wet touch capability)
Important for industrial/outdoor environments

5. Industrial-Grade Components & Operating Conditions

Designed for continuous 24/7 operation
Wide temperature range: -20°C to 70°C (-4°F to 158°F)
Suitable for harsh environments like factories, outdoor kiosks, or transportation

Specification

Model:SC15
PC
CPU	Intel® Celeron J4125, Base 2.4 Ghz, Turbo 2.7 Ghz
Chipset	Intel® Gemini Lake
Memory	8G DDR4-2400/2133
Storage Capacity	256G SATA3.0
Graphics	Intel® UHD Graphics 600
Audio	Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network	1*Realtek RTL8106E Gigabit network card
Wireless Network	WIFI + Bluetooth 4.0
Preinstalled OS	Window10 Pro
Operation System	Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
I/O
USB	2* USB2.0, 2* USB3.0
COM	2* COM RS232
LAN	2* RJ45
Video Outputs	1VGA, 1HDMI
Audio	1* 3.5mm Line-out, 1* 3.5mm Line-in (2 x 2W Speakers)
Power input	1* 12V DC jack
Other	1* Power on/off button, 1* WIFI antenna jack male
LCD panel
Screen diagonal	15"
Display active area	305.1(W)×229.1(H) mm
Resolution	1024*768
Aspect ratio	4:3
Brightness (cd/m²)	300 nits(1000 nits Optional)
Brightness control	N/A
Contrast ratio	1000:1
View angle	89°/89°/89°/89° (R/L/U/D)
Support Color	16.7M colors
Backlight	WLED, 50K hours
Touch panel
Touchscreen Type	Projected Capacitive Touch (up to 10 points )
Surface Hardness	7H
Surface treatment	N/A
Luminousness	≥90%
Touch controller IC	EETI 80
Available touch drivers	Windows, Linux, Android, Mac, etc
Touch bonding	Air bonding
Touch optional	Resisive touch, non touch, IR touch optional
Power Supply
Working voltage	DC 12V
Power consumption	18W
Power adapter	AC 100 ~ 240V input and DC +12V@5A MAX output, 60W
Enclosure
Material	Galvanized cold rolled plate shell
Finish	Electrostatic powder spraying
Color	Silver
VESA mounting	VESA mount 7575/100100mm, Panel mount
IP grade	Front IP65 waterproof
Operating Environment
Temperature Range	operating: -20 °C(-4℉) to 70°C(158℉), storage: -30 °C(-22℉) to 80°C(176℉)
Relative humidity	Up to 100% at all relevant temperatures, non-condensing
Vibration	GB/T 2423.10-2019
Shock	GB2423.5
EMC	Class B
Packing Details
Product weight	Net weight 3.5kg Gross weight 5kg
Product Dimension	381×267.2×65mm
Packing info	1pcs/ctn 53×16×40cm 5kg 2pcs/ctn 53×30×40cm 10.5kg
Accessories	Power cable, Power supply, Embedded mount screws, Antenna
Other
Warranty	1 year warranty
Certificate	CE, FCC, RoHS

Typical Applications: Industrial control panels, outdoor digital signage, medical equipment, transportation displays, or any environment requiring rugged, reliable touchscreen operation.

Advantages

1. Working temperature range is -10°C to 60°C.

2. Industrial LCD panel is wide viewing angle, high nits and true color.

3. Brightness is 1000 nits, sunlight readable suitable for more outdoor applications.

4. High performance motherboard, 7x24 continuous operation.

5. Symmetric design can be utillized in portrait mode with style.

6. Heat sink in back case great for heat dissipation and beatiful appearance.

7. Working voltage is wide range 9-36V, suitable for various applications.

Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.
